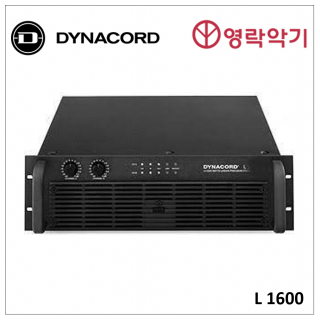

DYNACORD L 1600 > DYNACORD

The model L 1600 is a 2 x 800 Watts Power Amplifier. Linear Precision Series power amps combine excellent audio performance, modern and innovative circuit design, meticulous and exceptionally rigid construction, and the highest levels of operational integrity and reliability with an appropriate and more than realistic price. The robust steel chassis provides outstanding torsional strength through L-shaped side panels reaching under the thick aluminium front panel. Thermal breakers prevent the power supply units from being damaged by thermal overload. Electronically controlled fans provide sufficient front-to-rear airflow and a special cool air diverter takes care of thermal stability. The fans’ noise-level is extremely low which provides the possibility for studio use. If necessary, a supplied air-filter can be mounted behind the front panel ventilation louvres. The L-1600 embody separate and fully independent DUAL-MONO power supply units.

Features

Excellent audio performance

Symmetrical topology

Ultra-low distortion

Generously dimensioned power supply units

Suitable to be operated on loads down to 2 ohms

Suitable to drive complex loads with phase angles of ± 90 degree

Extensive protection circuitry

Unique Back-EMF protection

Switchable limiters

Switchable Hi/Lo-Cut filters

Robust steel chassis

Exceptional low noise front-to-rear air-flow

XLR-type inputs and direct-outs

LED display shows On, In, Out, Limit and Protect

DUAL-MONO power supplies

Highly reliable operation

Specs

Max. Output Power - into 8 ohms : 2 x 560 W at 1 kHz / THD = 1.0%

Max. Output Power - into 4 ohms : 2 x 900 W at 1 kHz / THD = 1.0%

Max. Output Power - into 2 ohms : 2 x 1200 W at 1 kHz / THD = 1.0%

Max. Output Power - into 8 ohms bridged : 1 x 1800 W at 1 kHz / THD = 1.0%

Max. Output Power - into 4 ohms bridged : 1 x 2400 W at 1 kHz / THD = 1.0%

Rated Output Power - into 8 ohms : 2 x 500 W at 20 Hz - 20 kHz / THD = 0.1 %

Rated Output Power - into 4 ohms : 2 x 800 W at 20 Hz - 20 kHz / THD = 0.1 %

Rated Output Power - into 2 ohms : 2 x 1000 W at 20 Hz - 20 kHz / THD = 0.1 %

Rated Output Power - into 8 ohms bridged : 1 x 1600 W at 20 Hz - 20 kHz / THD = 0.1 %

Rated Output Power - into 4 ohms bridged : 1 x 2000 W at 20 Hz - 20 kHz / THD = 0.1 %

Frequency Response : 0 dB ..... -1 dB/20 Hz - 20 kHz

Phase Angle Response : ± 30 degree/20 Hz.....20 kHz

Maximum Output Level : 72 V / RMS before clipping, no load, ref. 1 kHz / THD = 1%

Voltage Gain ref. 1 kHz : 26 dB (constant gain option)

Input Sensitivity : 0 dBu/0.775 V, +6 dBu/1.55 V at rated output / 4 ohms ref. 1 kHz

Maximum Input Level : +21 dBu / 8.7 V

Input Impedance active balanced : 20 kohms

THD at Rated Output : < 0.05 % MBW = 80.0 kHz, f = 1 kHz

IMD -SMPTE : < 0.01 % 60 Hz, 7 kHz, at rated output

Signal-to-Noise Ratio : >105 dB at rated output into 4 ohms, A-weighted, RMS, input sensitivity +6 dBu

Attenuation at rated output : > 70 dB f = 1 kHz

Damping Factor internal 1 kHz : > 300

DIM 30 : < 0.01 %

DIM 100 : < 0.01 %

Slew Rate internal : > 35 V / µs

Power Consumption : 1100 W 1/8 rated output into 4 ohms

Width : 483 mm

Height : 132.5 mm

Depth : 426 mm

Weight : 27 kg
